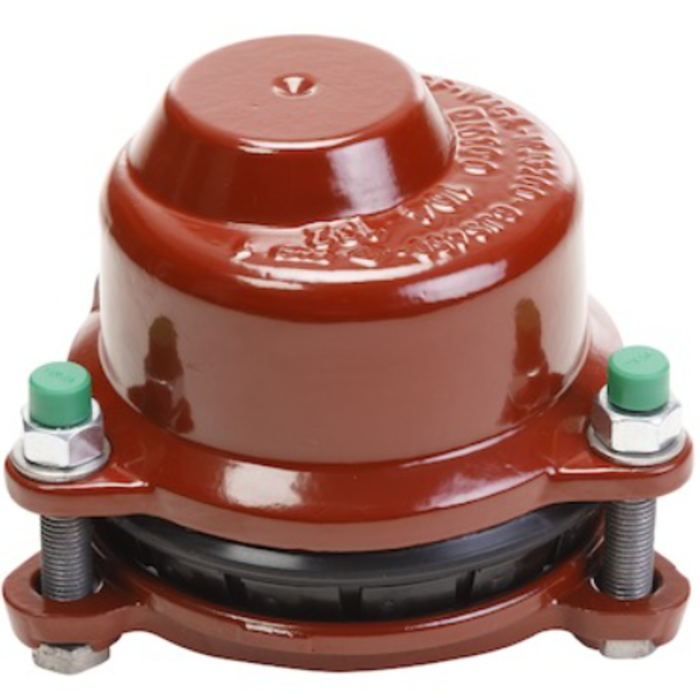

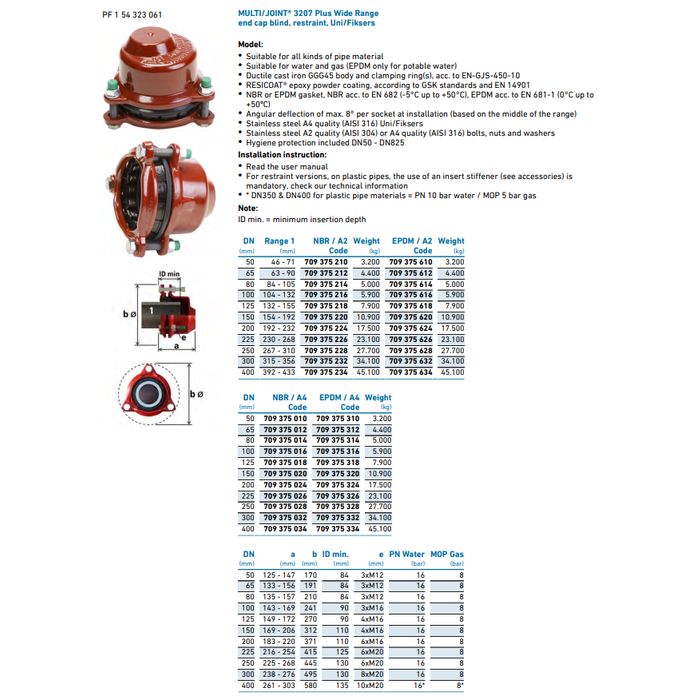

MULTI/JOINT® 3207 Plus Wide Range end cap blind, restraint, Uni/Fiksers
Model:
• Suitable for all kinds of pipe material
• Suitable for water and gas (EPDM only for potable water)
• Ductile cast iron GGG45 body and clamping ring(s), acc. to EN-GJS-450-10
• RESICOAT® epoxy powder coating, according to GSK standards and EN 14901
• NBR or EPDM gasket, NBR acc. to EN 682 (-5°C up to +50°C), EPDM acc. to EN 681-1 (0°C up to
+50ºC)
• Angular deflection of max. 8° per socket at installation (based on the middle of the range)
• Stainless steel A4 quality (AISI 316) Uni/Fiksers
• Stainless steel A2 quality (AISI 304) or A4 quality (AISI 316) bolts, nuts and washers
• Hygiene protection included DN50 - DN825
Installation instruction:
• Read the user manual
• For restraint versions, on plastic pipes, the use of an insert stiffener (see accessories) is
mandatory, check our technical information
• * DN350 & DN400 for plastic pipe materials = PN 10 bar water / MOP 5 bar gas
Note:

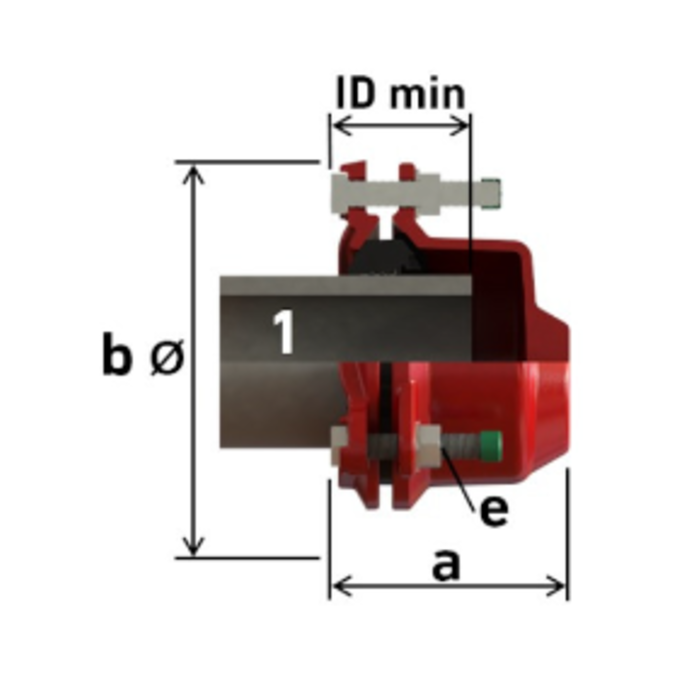

ID min. = minimum insertion depth
