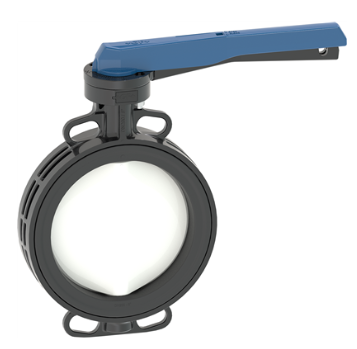

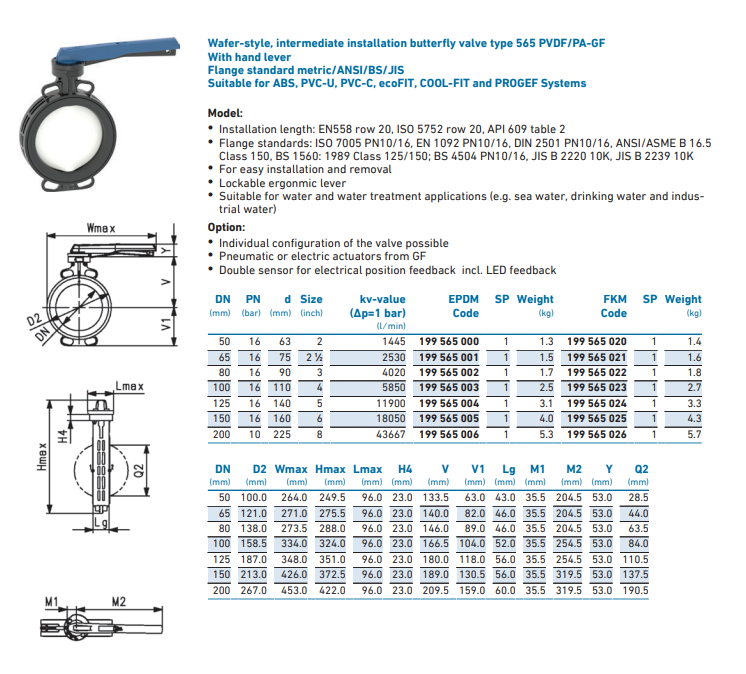

Wafer-style, intermediate installation butterfly valve type 565 PVDF/PA-GF
With hand lever. Flange standard metric/ANSI/BS/JIS. Suitable for ABS, PVC-U, PVC-C, ecoFIT, COOL-FIT and PROGEF Systems
Model:
• Installation length: EN558 row 20, ISO 5752 row 20, API 609 table 2
• Flange standards: ISO 7005 PN10/16, EN 1092 PN10/16, DIN 2501 PN10/16, ANSI/ASME B 16.5
Class 150, BS 1560: 1989 Class 125/150; BS 4504 PN10/16, JIS B 2220 10K, JIS B 2239 10K
• For easy installation and removal
• Lockable ergonmic lever
• Suitable for water and water treatment applications (e.g. sea water, drinking water and industrial water)
Option:
• Individual configuration of the valve possible
• Pneumatic or electric actuators from GF
• Double sensor for electrical position feedback incl. LED feedback
