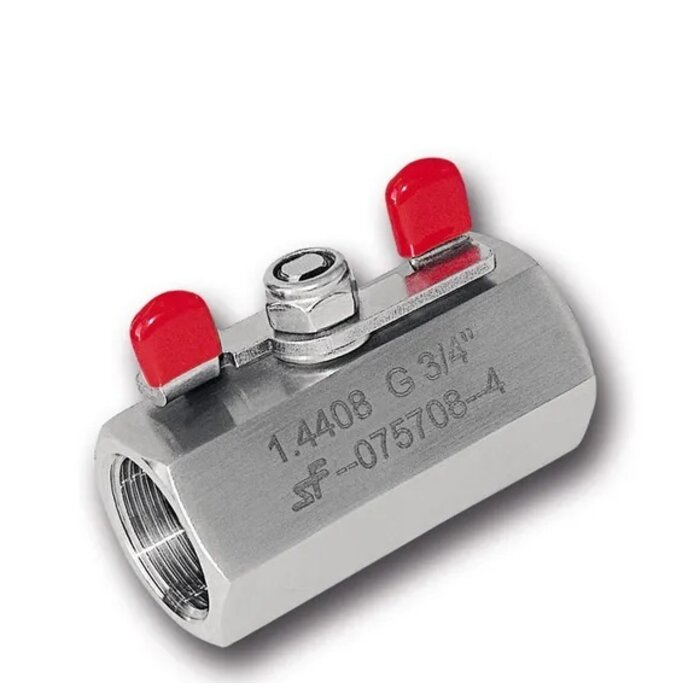

Schwer Fittings Ball Valve One piece

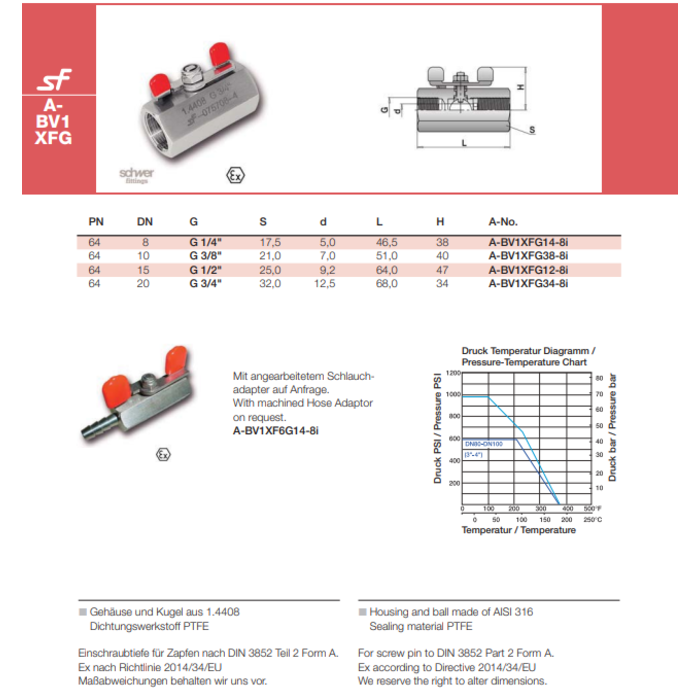

Housing and ball made of AISI 316. Sealing material PTFE, for screw pin to DIN 3852 Part 2 Form A. Ex according to Directive 2014/34/EU. We reserve the right to alter dimensions. Please note the pressure-temperature diagram. With machined flat hose adapters on request. A-BV1XF6G14-8i with internal and external thread 1/4 "on request. A-BVXMG14IA-E2i. All products are developed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Products with nominal diameters of more than 25 mm up to and including 32 mm must not be used for pumping liquid or gaseous fluids of group 1 (hazardous) according to the Pressure Equipment Directive PED 2014/68/EU. Products with nominal diameters greater than 32 mm may only be used for pumping group 2 (non-hazardous) liquid fluids according to the Pressure Equipment Directive PED 2014/68/EU. If used with other media, a review by Schwer Fittings should be requested.
