Product information

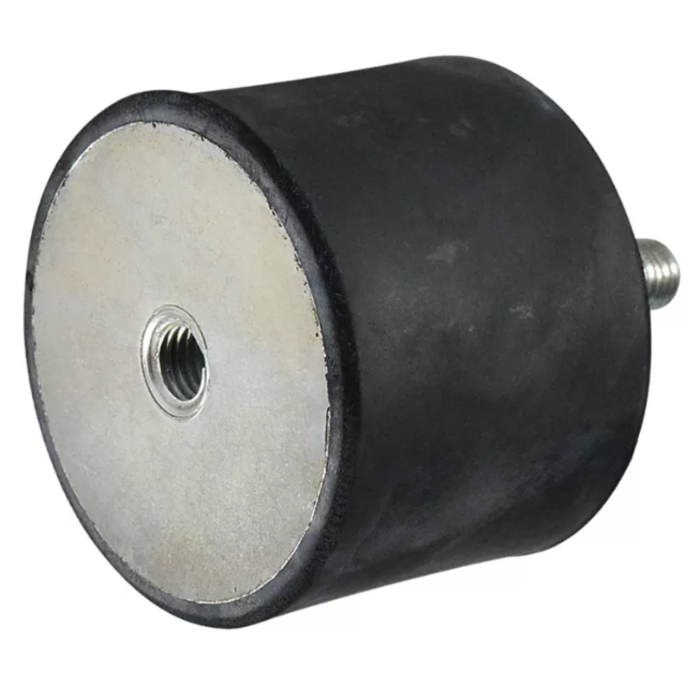

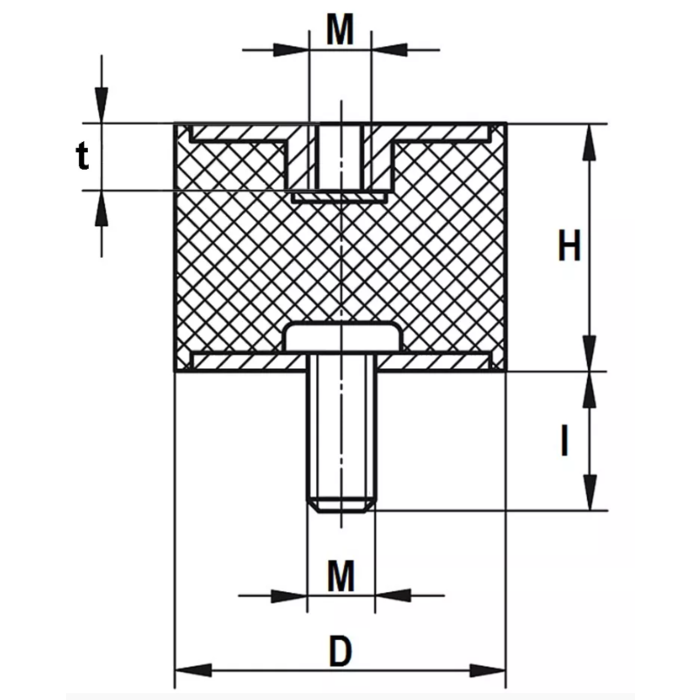

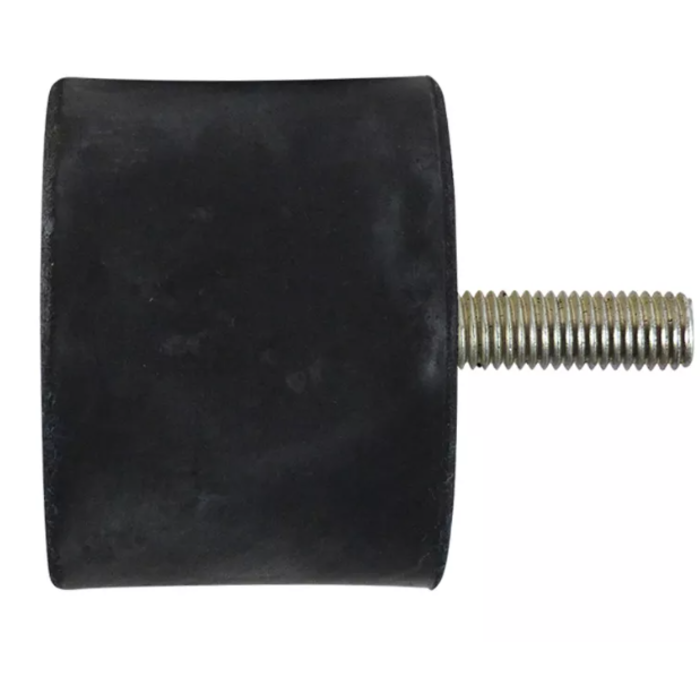

- Cylindrical rubber-metal anti-vibration bobbin mounts type B are available in diameters from Ø 6 mm to Ø 200 mm inclusive, and in heights from 4 mm to 100 mm inclusive
- Threaded stud (male) on one side and a threaded bush (female) on the other side
- Thread sizes (metric) from M3 to M24 inclusive, in various stud lengths
- Suitable for temperatures from -30 °C to +80 °C
- Can be used in compression and shear
- Generally used to reduce vibration and noise levels in motors, compressors, fans, pumps and control cabinets.
Material: Rubber parts - NR (natural rubber) Shore A 55° ±5% (medium hard), Metal parts - galvanised steel (St37) or stainless steel AISI 304 (A2)
